ISUZU 600P Airport Runway Street Sweeper Vehicle With Cleaning Brushes Water Spraying

Name: ISUZU 600P Airport Runway Street Sweeper Vehicle With Cleaning Brushes Water Spraying
Brand: Dong Run Ze
Price: 1 USD

Wholesale ISUZU 600P Airport Runway Street Sweeper Vehicle With Cleaning Brushes Water Spraying from china suppliers

Brand Name : Dong Run Ze

Model Number : ISUZU

Certification : C3

Place of Origin : Hubei ,China

MOQ : 1 Unit Call /WhatsApp:+8615271357675

Price : Negotiated at Weichat:King253725877

Payment Terms : TT emial to <253725877@qq.com>

Supply Ability : Ask us for Better Price <253725877@qq.com>

Delivery Time : 25 working days

Packaging Details : Some Body Part By containers , Truck by Ro-Ro or Bulk base on the ship and port in your country. If the truck on the deck, we will spray antirust paint with free. please emial to

HS-Code : 8705909990

Cell : 8615271357675

Engine Brand : ISUZU Euro 4/5

Standard steel : Carbon steel Optional Stainless steel

Key Parts : sweeping brushes, stainless steel vacuum tank, water tank, auxiliary engine, electromagnetic control valve, suction cup, sprinkler system, hydraulic system and electrical system.

Stainless Steel Trash : 4 M3,5m3,6m3

Stainless Steel Water Tank : 1200 L,2000L,4000L

Sweeping width : 》3.5m

Working Speed : 5-20KM/H

Max. sweeping capacity : 45000-90000m2/h

Contact Now

ISUZU Good Quality Road Cleaning Sweeper with cleaning brushes and water spraying fuction

Road sweeper truck is a special vehicle for road garbage sweeping. As one of the sanitation equipment, the road sweeping vehicle has the function of saving time and effort. Is a new type of high efficiency cleaning equipment, which integrates the road surface cleaning, garbage collection and transportation.
It can be widely used in urban streets, municipal square and Airport Road, urban residential areas, parks and other road sweeping operations.
Road sweeper truck can not only cleaning garbage, but also clearing the dust in the air,it can ensure the clean and tidy of road, prevent dust, to maintain a good working condition of the road, to minimize or prevent the traffic accidents happen and further extending the service life of the pavement.

Dust tank volume	4000L	Water tank volume	1500L
Sweep width	3000m	Cleaning speed	3-20km/h
Cleaning ability	9000-60000 m2/h	Cleaning efficiency	98%
Maximum suction particle	120mm	Min. clearance of suction nozzle	200mm
Unloading angle	45°	Unloading height	970mm

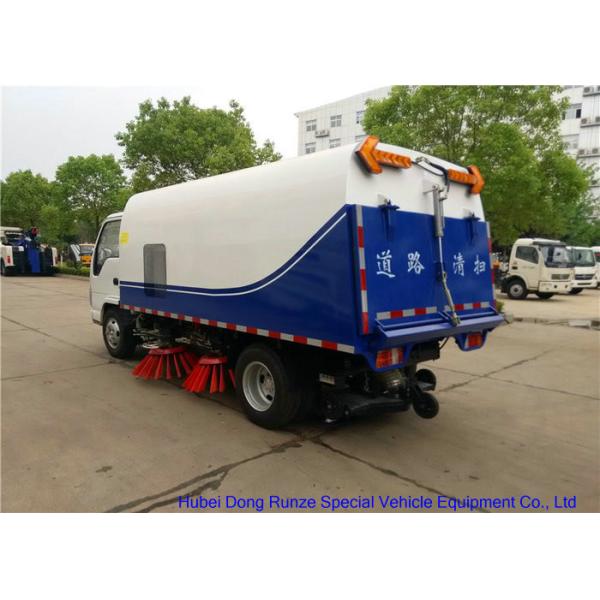

Road Sweeper Truck Photo Show:

ISUZU 600P Airport Runway Sweeping Truck With Cleaning Brushes And Water Spraying Fuction ISUZU 600P Airport Runway Street Sweeper Vehicle With Cleaning Brushes Water Spraying

ISUZU 600P Airport Runway Street Sweeper Vehicle With Cleaning Brushes Water Spraying

ehicle Model	DRZ5070TSLQ	Vehicle Brand	DRZ
Overall dimensions	6465X1980X2435mm	Curb weight	5600kg
Dust tank volume	4000-5000L	Water tank volume	1500L

Chassis parameters
Chassis model		QL1070A1KAY	Chassis brand	ISUZU
Overall dimensions		6645x1880x2160mm	Wheel base	3815mm
Front/rear wheel track		1504/1425mm	Front/rear suspension	1015/1815mm
Approach/departure angle		24/14°	Maximum speed	105km/h
Chassis Manufacturer		QingLing Motors (Group) Co., Ltd.
Cab	Configuration	600P,single row cab,allowable 2 passengers,car interior, air conditioner, USB radio interface, with oil brake vacuum booster pump
	Color	White,other color is optional
Engine	Model	4KH1-TCG40
	Emission	Euro 4
	Type	4 cylinders, in-line, 4-stroke,water-cooled,turbo inter-cooling,4-valve ,diesel engine
	Rated power	120hp,rated power speed 3400rpm
	Displacement	2999ml
	Manufacturer	Isuzu Engine (Chongqing) Co., Ltd.
Tire	Size	7.00-15 10PR nylon tire
	Number	6+1 nos
Front axle	2.5 tons
Rear axle	4.8 tons
Drive form	4X2
Suspension	Multi leaf springs
Rated voltage	24V,DC
Transmissions	Isuzu MSB five speed transmission,5 speed forward 1 reverse.
Steering device	Power assisted steering
Steering wheel	Left hand drive
Selective configuration
If there is a slight change in the chassis parameters above,please take the actual product as the standard

Road sweeper structure parameters
Dust tank volume		4000-5000L	Water tank volume	1500L
Sweep width		3000m	Cleaning speed	3-20km/h
Cleaning ability		9000-60000 m2/h	Cleaning efficiency	98%
Maximum suction particle		120mm	Min. clearance of suction nozzle	200mm
Unloading angle		45°	Unloading height	970mm
			Color and Logo	Optional
Standard configuration	Chassis,sub frame,body,4 sweeping brushes, stainless steel vacuum tank, water tank,5T fan, auxiliary engine, electromagnetic control valve, suction cup, sprinkler system, hydraulic system and electrical system.
Selective configuration	surveillance system,rolling brush.

Shipment option

CBU terms should be chosen for such tanker shipment. By bulk ship, or RORO car carrier ship. some by Flat /Frame container
